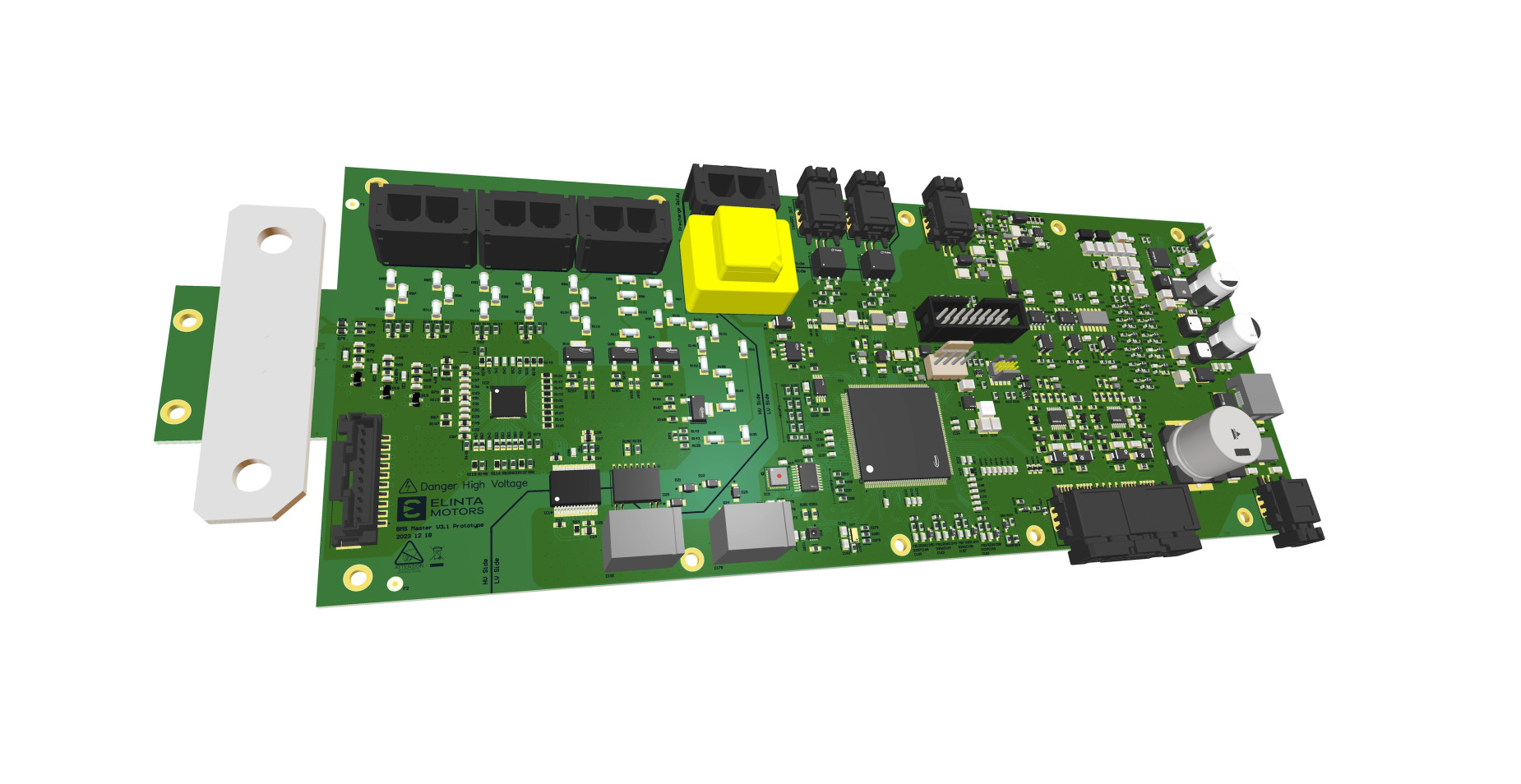

GEN III BATTERY MANAGEMENT SYSTEM
Elinta Motors' third-generation robust automotive battery management system comes equipped with ISO 26262 compatibility, ensuring the highest standards of functional safety, and integrates ECE R-100.03 certified leakage and HVIL (High Voltage Interlock Loop) measurement for enhanced safety and reliability in electric vehicles.
Up to 216 cells in series (850 V)
12x Cells per module
Tricore Aurix MCU
CAN-USB user interface configuration
Balancing current 70 mA
Battery management system comes equipped with ISO 26262 compatibility, ensuring the highest standards of functional safety
Technical data
Key Features
| Melting Fuse/Pyro fuse voltage monitoring up to ±1 kV | 1x H bridge with open wire, short wire overcurrent diagnosis for pyro-fuse drive |
| Dual Battery pack voltage monitoring up to 1 kV | Pressure sensor for thermal runaway detection |
| Battery Positive and Negative contactor voltage monitoring up to ±1 kV | Humidity and temperature sensor for coolant leak or battery housing leak |
| Tripple current monitoring with on board shunt | Tricore Aurix MCU ISO26262 ASIL-D Compatible |
| Fast dual level overcurrent detection with dedicated outputs | Safety power supply 12-24V and ISO26262 compatible |
| On board pre-charge relay | 3x CAN bus up to 1Mb/s with can bus wake up option |
| 4x contactor output with broken wire detection and short circuit protection | Current based HVIL loop (50 mA) with full diagnosis on both wires |
